AUSRÜSTUNG
TAPIO EXTRABOOM
Arm extension rigid or with
hydraulic extension 1 m.
PRICES AND EQUIPMENT available ON REQUEST!

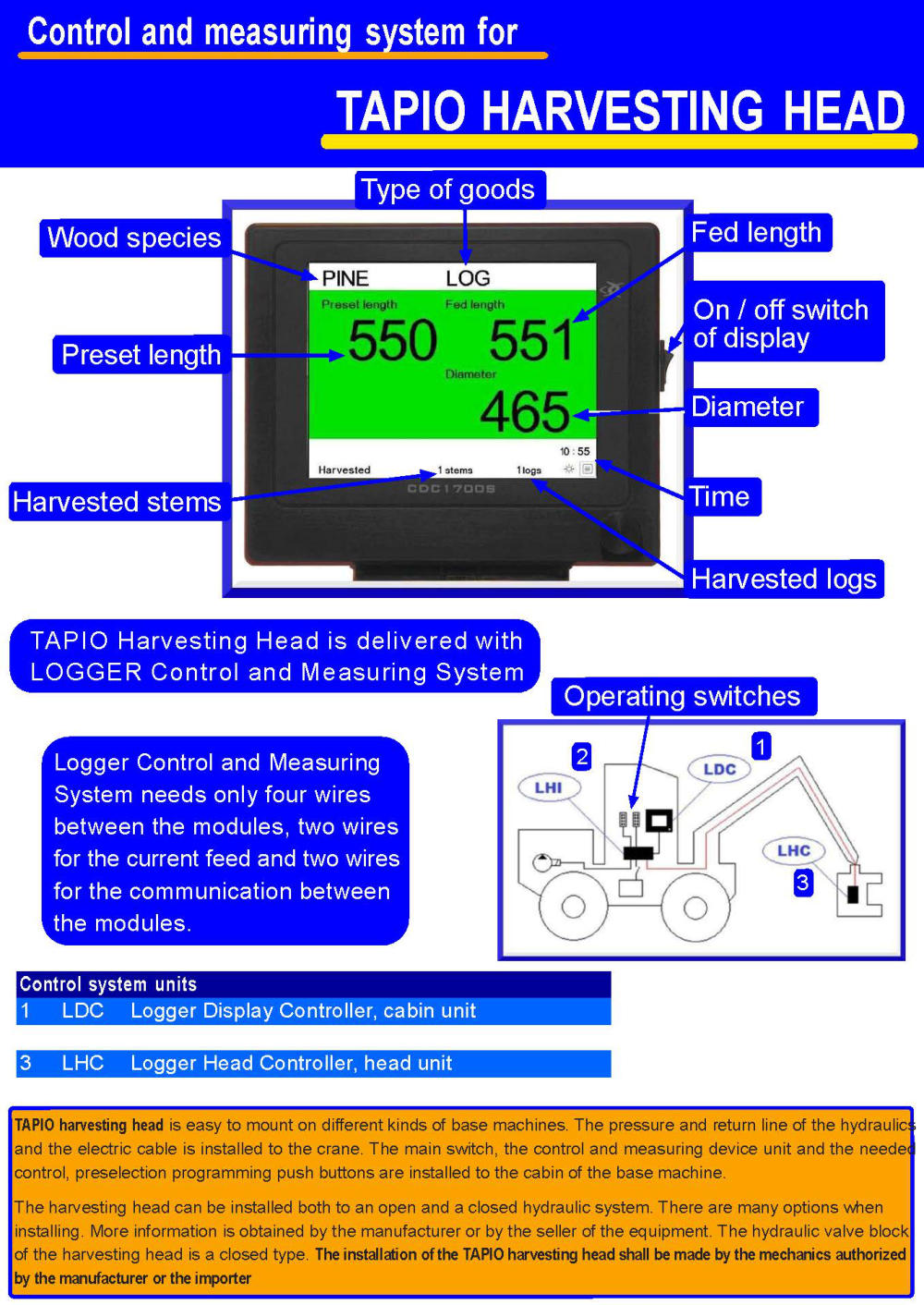

Harvester - LOGGER Control
Tapio Stroke harvesters are equipped with the professional "Logger-Control" harvester control system, this system
allows users to predefine programmable workflows for tree species, logs, pulpwood, and wood chips via a preset
box, depending on the tree diameter. These workflows can then be recalled at the touch of a button. This feature
greatly simplifies the workflow, as the processing parameters can be defined according to customer requirements
for each tree species.
Example:
SpruceProgram
1: From felling cut up to 17 cm trunk diameter: logs 4 m, pulpwood 2 m, wood chips from 8 cm diameter
Program 2: From felling cut up to 20 cm trunk diameter: logs 5 m, pulpwood 3 m, wood chips from 7 cm diameter
This allows most tree species and processing parameters to be predefined and recalled as needed.
Furthermore, the Logger-Control system allows daily output to be retrieved via USB or printed. Daily output is
stored in: number of logs per species and m³ per species. This function also allows for the... To ensure
measurements for multiple customers per day.
The opening of the delimbing knives is adjustable, allowing for partial debarking of the logs, which promotes
rapid drying (preventing beetle infestation).
Function checks of the controls and sensors are possible via the control unit. Length and diameter measurements
can be calibrated via the display, enabling precise measurements. And much more. Tapio push harvesters first
appeared on the Austrian market in 1979 as single-reach harvesters and have since established themselves as
reliable, robust, and easy-to-use machines, ranking among the top performers worldwide. The machines are
continuously improved and optimized with the latest technology. New updates to the LOGGER control system can
be easily installed via USB. For questions regarding technology, operation, and settings, Tapio customers can also
obtain information quickly via a telephone hotline.
