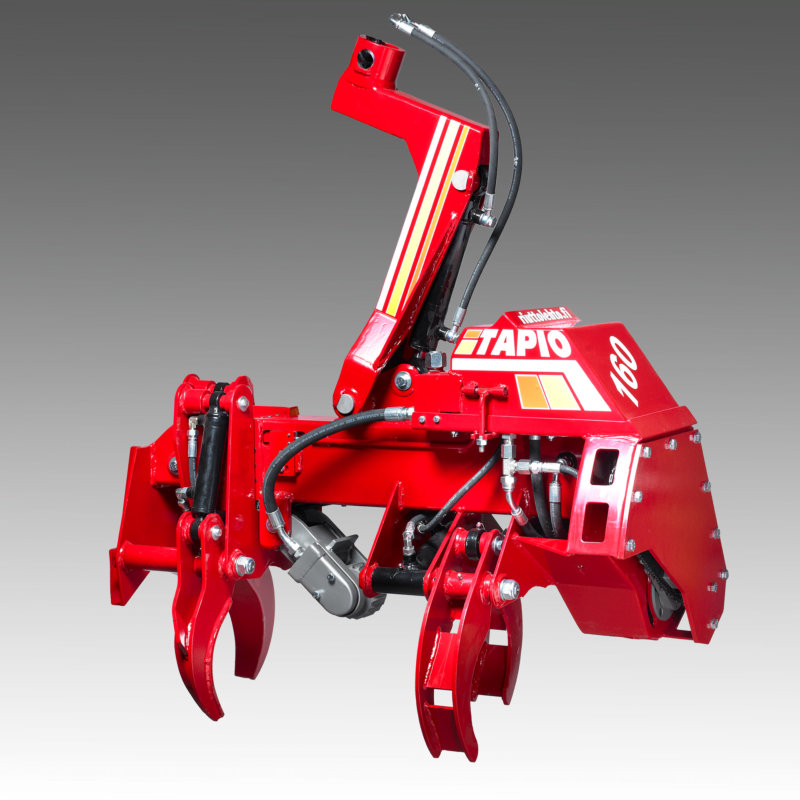

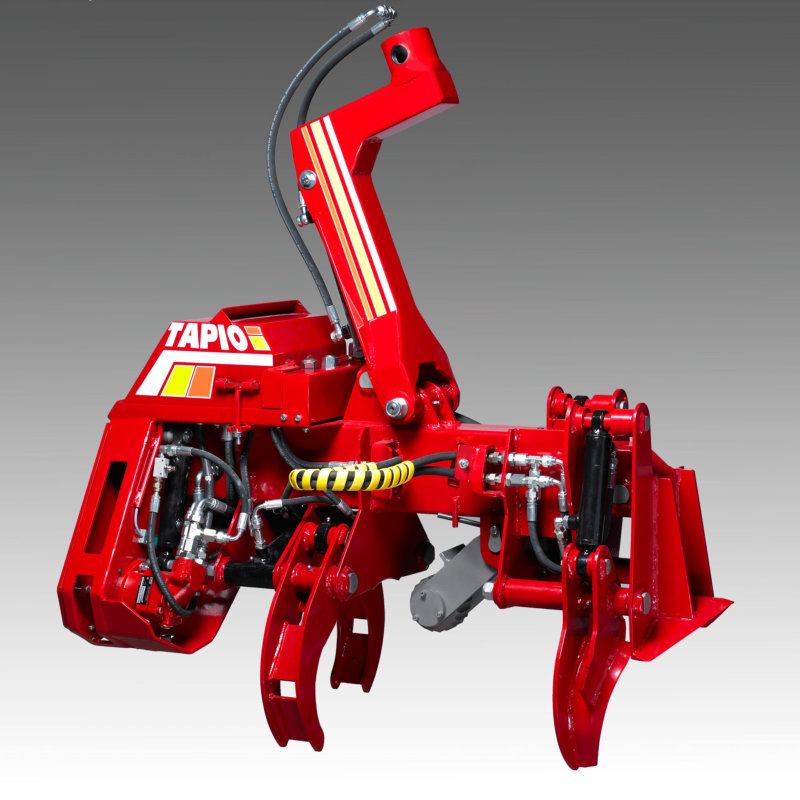

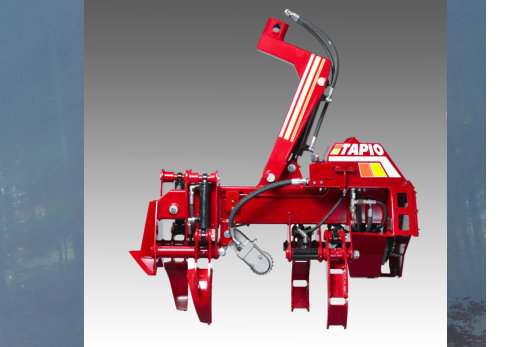

TAPIO 160
TAPIO 160 Stroke - Harvester
with length and diameter measurements
Length x Width x Height 1030 x 550 x 630 mm
Weight 215 kg
Power supply 12/24 V DC
Saw bar 12” 1.6 mm
Saw chain .404” 1.6 mm
Pump/Pressure 1500 rpm 40–60 l/min 160 bar
Push length 500 mm
Push speed 0.75 m/sec
Limbing force 12.86 kN at 160 bar
14.47 kN at 180 bar
Max. felling diameter 250 mm
Max. limbing diameter 200 mm
Harvester power requirement 15 kW
Standard equipment for TAPIO 160 Harvester:
TAPIO 160 manual
LOGGER Control control unit
Display for LOGGER Harvester control
Display bracket for control unit
2 switch button housings with 6 buttons each,
connected to the LOGGER Control
2 switch button housing brackets
17x0.75 boom cable from the LOGGER
to the harvester, 15 m
Boom cable connectors (1+1)
Connector sleeves (1+1)
Saw bar .404-1.6 12” (1)
Saw chain .404-1.6 48 (1)
Alternatives to tractors:
Agricultural tractors
Small tractors
Small timber harvesters
3-6 t excavators
