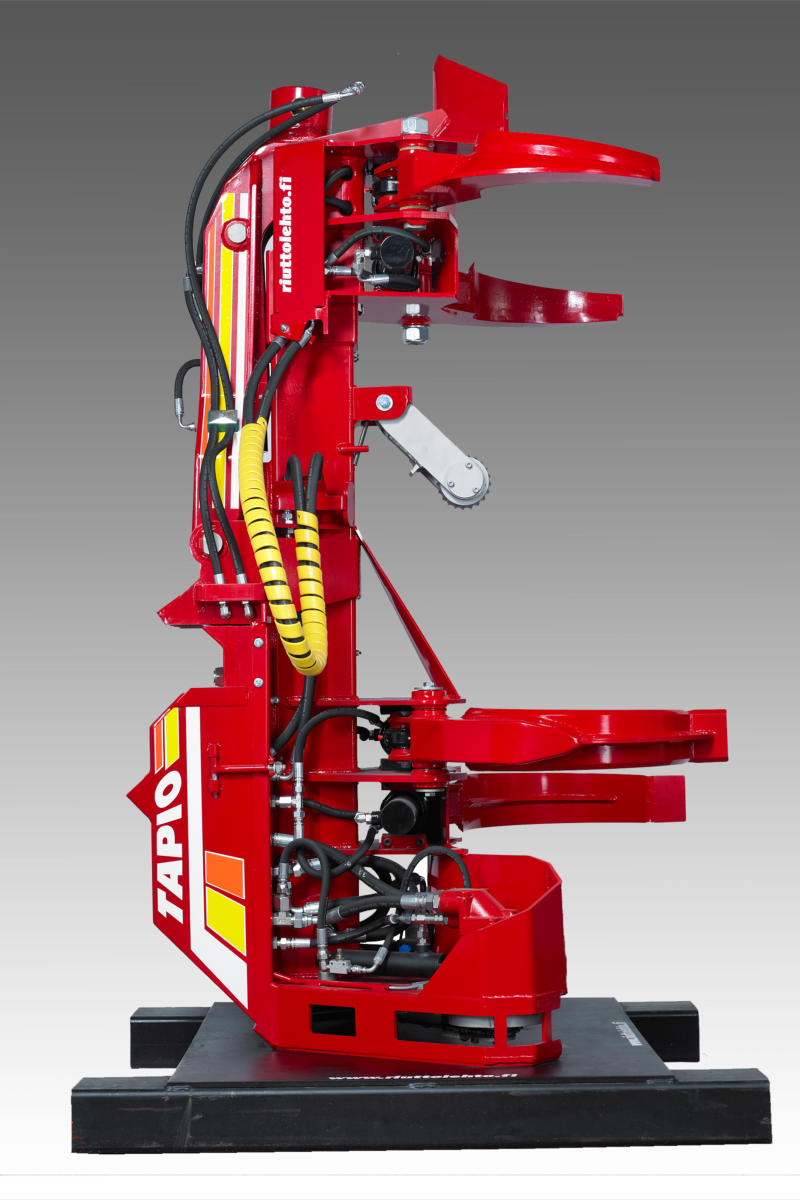

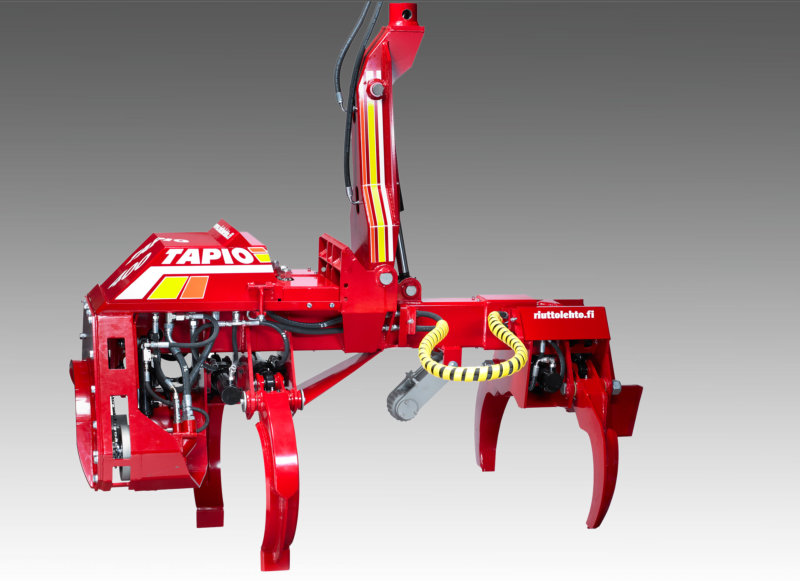

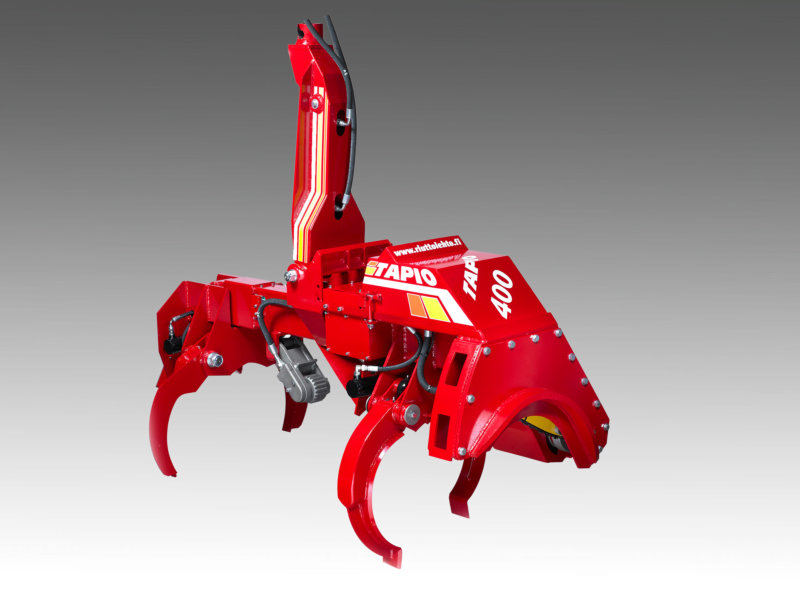

TAPIO 400 / 400 EXS

TAPIO 400 / 400 EXS Stroke - Harvester Length x Width x Height 1650 x 700 x 700 mm Weight 470 kg Power Supply 12/24 V DC Saw Bar 18” 2.0 mm Saw Chain .404” 2.0 mm Pump/Pressure 1500 rpm 80 - 110 l/min 160 bar Throw Length 1000 mm Throw Speed ​​1 m/sec Limbing Force 25.0 kN 160 bar (29.68 kN / 190 bar) Max. Felling Diameter 450 mm Max. Limbing Diameter 400 mm Harvester Power Requirement 35 kW Standard equipment Tapio 400 / 400 EXS Harvester: TAPIO 400 Manual Logger Control Manual Length Measurement Diameter Measurement Logger Harvester - Control Unit with display, control boxes, connection cables and consoles Preselection switching module for assortment and shaping Cable from 2x0.75 + 2x1 + 2x2 from the operator's cab switching module to the harvester's grapple module. Sawbar .404-2.0 18” Saw chain .404-2.0 65

CARRIER VEHICLE: Large agricultural tractors Harvesters and construction equipment Excavators 6-14 tons

The TAPIO EXS harvester is additionally equipped with two control valves for the rotator and felling cylinder, which are operated via the harvester control system. Therefore, only one pressure and one return line are required for the hydraulic supply (e.g., the hammer line on excavators).   Installation is correspondingly simple and cost-effective.
