ACCESORIES

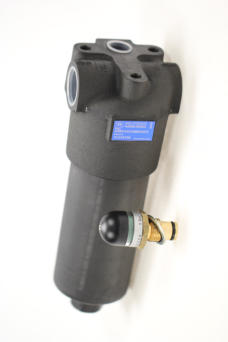

Pressure filter 140 L/min
Pmax: 280 bar
Tmax: -25°C to +120°C
Qmax: Filter element: 10 µm fiberglass
fleece
Max. permissible differential pressure:
21 bar
Gasket: NBR
Connection thread: 1 1/4" BSP
Without bypass valve
With service indicator: optional,
switching point 5 bar
BALTROTORS

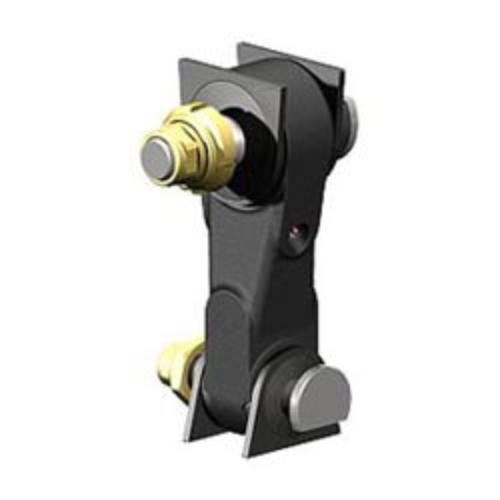

Brakelink:
Load capacity: 5500 kg
Top shaft: 40 mm
Bottom shaft: 30 mm
BALTROTORS
Dual-braked pendulum joint
Load capacity: 10,000 kg
Braking torque: 200–250 Nm
Lower cross bore: 35 mm
Upper cross bore: 45 mm
BALTROTORS

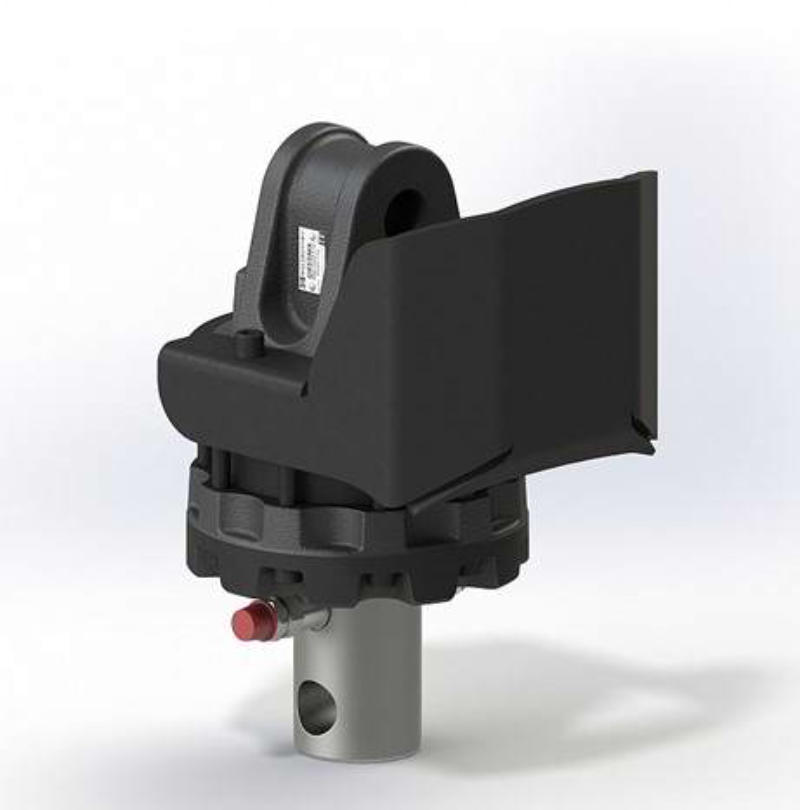

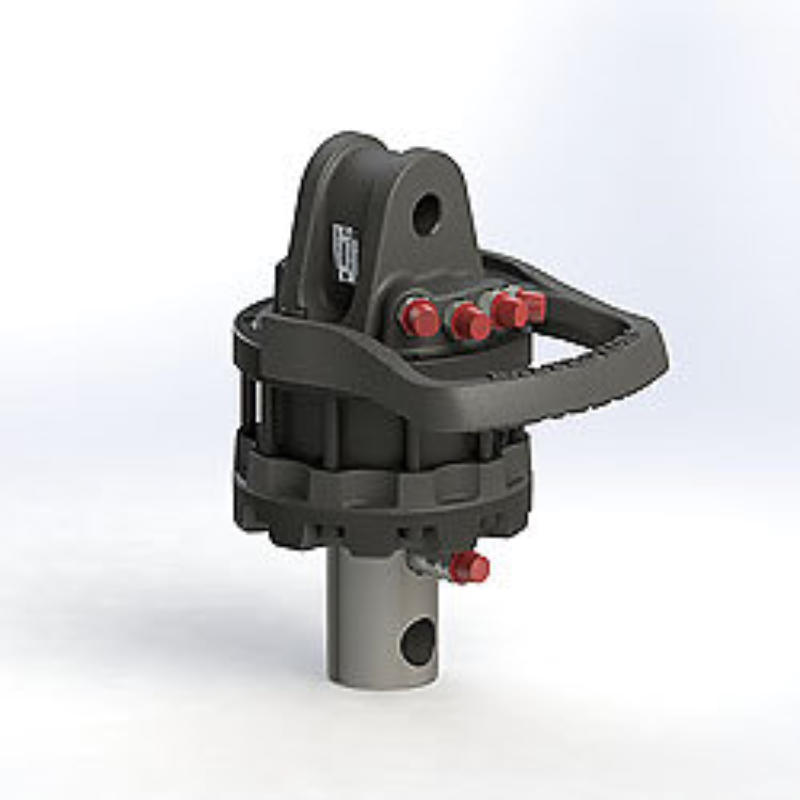

GR 55 / MX
Rotator
Load capacity: 5500 kg
Maximum working pressure: 300 bar
Torque at 250 bar: 1300 Nm
Maximum axial force: 25 kN
Weight: 39 kg
Shaft diameter: 69 mm
Shaft cross bore: 30 mm
Top cross bore: 30 mm
